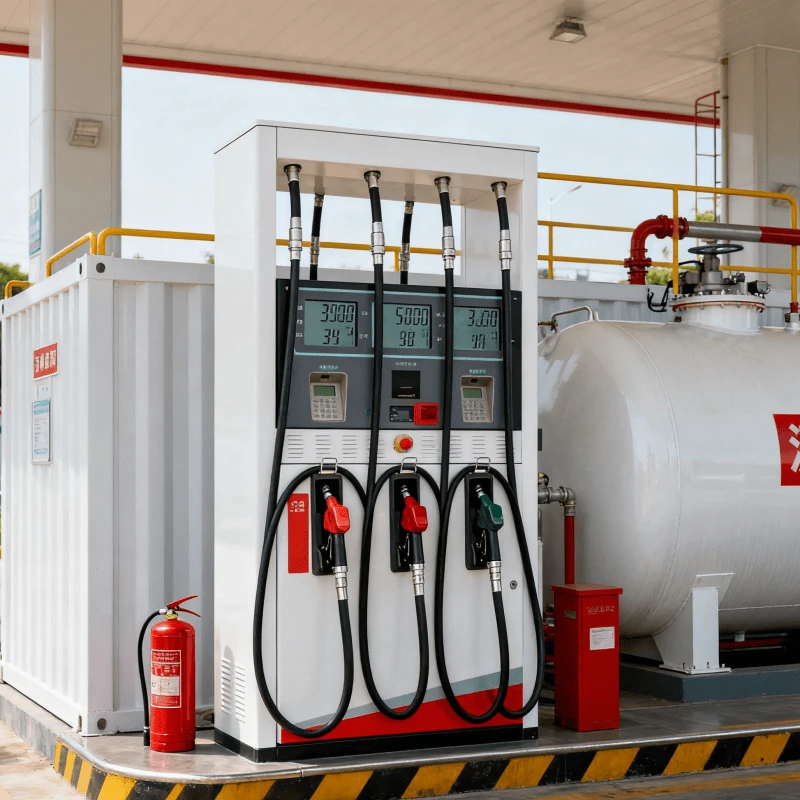

Skid Mounted Refueling Station
Key Features & Materials
Multi-Fuel Compatibility:
The skid mounted refueling station can be used seamlessly with diesel, gasoline, and biodiesel (B5-B20), adapting to the fuel needs of various fleets or equipment.
Durable & Safe Build:
Fuel tank uses Q245R carbon steel with a double-layer anti-corrosion coating (epoxy + polyurethane) for long outdoor service; dispenser hoses are made of oil-resistant, anti-aging nitrile rubber to prevent leaks.
Smart Monitoring Option:
Optional remote fuel level sensors and digital flow meters let you track usage in real time, reducing waste and ensuring timely refills.
production workshop
Technical Specifications
|
Parameter |
Range/Details |
|
Fuel Tank Capacity |
3,000L – 50,000L (customizable) |
|
Deployment Time |
24–48 hours (standard model) |
|
Dispensing Flow Rate |
45L/min – 110L/min |
|
Applicable Fuel |
Diesel, Gasoline, Biodiesel (B5-B20) |
Product Advantages
All-in-One Skid Design
Integrated structure with pump, tank, metering & control system pre-assembled, realizing quick on-site installation and commissioning without complex civil engineering.
01
High Mobility & Flexibility
Compact skid-mounted body enables easy transportation and relocation, perfectly adapting to temporary fuel supply needs of construction sites, mining areas and mobile project teams.
02
Intelligent Safe Operation
Equipped with automatic leak detection, overfill protection and explosion-proof components, matching with digital fuel management system for real-time monitoring and safe unattended operation.
03
Space & Cost Efficient
Optimized layout saves occupied area by 40% compared with traditional refueling stations; pre-fabricated production reduces on-site construction and maintenance costs significantly.
04
Customizable Configuration
Support personalized customization of tank capacity, fuel type (diesel/gasoline) and metering precision to meet diverse industrial fuel supply demands of different scenarios.
05
Product Case
Services
Customization & Certification:
Tailor tank size, add monitoring systems, and obtain region-specific certifications (CE, UL, ATEX) to meet local safety standards.
End-to-End Logistics:
Arrange door-to-door shipping via sea/land, with reinforced packaging to protect the unit during transit.
On-Site Support:
Provide on-site setup guidance, operator training, and a 12-month warranty on core components, with 24/7 technical assistance.
Product shipment
FAQ
Q: Can the station be customized with multiple fuel compartments?
A: Yes-we offer dual-compartment models to store two fuel types simultaneously, with separate dispensers to avoid cross-contamination.
Q: Is it suitable for remote areas without grid power?
A: Absolutely-optional solar panels or backup generators can power the dispenser, ensuring operation in off-grid locations.
Q: How often does a skid mounted refueling station require maintenance?
A: Monthly checks of hoses and valves, plus annual tank inspection and filter replacement, are enough to keep it running reliably.
